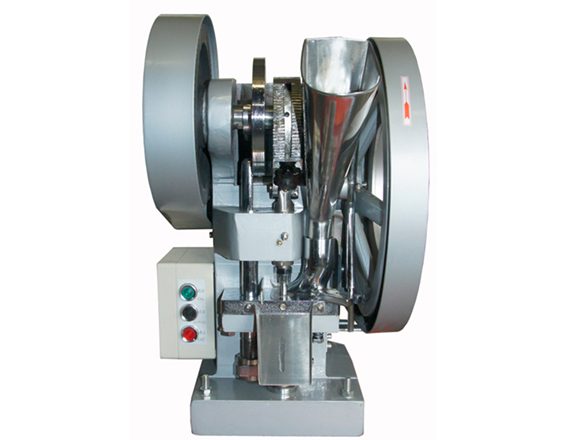

Single Punch Tablet Press TDP-5N，6N
This machine is used for tablet different kinds of granular raw materials into round tablet. It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape .It features a small desktop type press for motive and continual sheeting. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
ITEM | TDP-5N | TDP-6N |
Max.Pressure | 50KN | 60Kn |
Max.Dia of Tablet | 22mm | 25mm |
Max.Depth of Fill | 15mm | 15mm |
Max. Thickness of Tablet | 7mm | 7.5mm |
Production Capacity | 4200pc/h | 3600pc/h |
Power,Revolving speed and Voltage of Electromotor | 550W.1400r/min
220V 50Hz | 1100W.1400r/min
220V 50Hz |
Overall Size | 600*500*700mm | 650*600*700mm |
Net Weight | 160KGS | 165kg |
