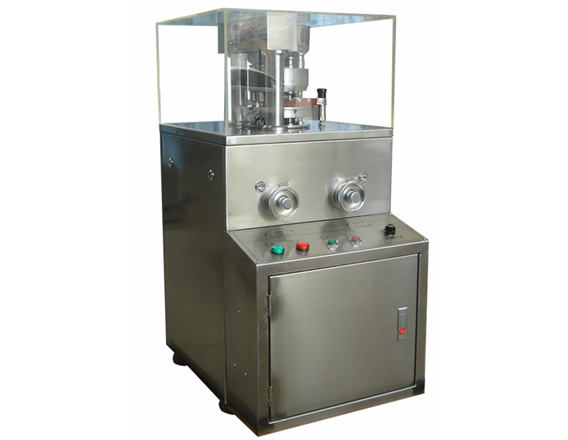

ZP is a new generation product by our factory, and this machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mainly used in pharmaceutical industry and also the chemical ,food, electronic industries.
Characteristics:
Design of GMP
High quality all stainless steel constructions
Reliable safety sealing system and dust-proof system
High visibility isolated door to prevent cross contamination
Easily remove parts for quick machines maintenance
ITEM | TYPE | ||
ZP10A | ZP10B | ZP12A | |
Dies | 10 Sets | 12. Sets | |
Max .pressure | A Type 40 KN B Type 50 KN | ||
Max. Dia . Of Tablet | 13 | 16-20 | 13 |
Max. depth of filling | 15 mm | ||
Max. Thickness of Tablet | 6 mm | ||
Turret Speed | A Type 32 r/min B Type 30 r/min | ||
Production Capacity (pc/h) | 19200 | 18000 | 28800 |
Power | A Type 1.1 KW B Type 1.5 KW | ||
Overall size | A Type 600*960*1150 mm B Type 690*1100*1320 mm | ||
Net weight | A Type 260 kg B Type 300 kg | ||
